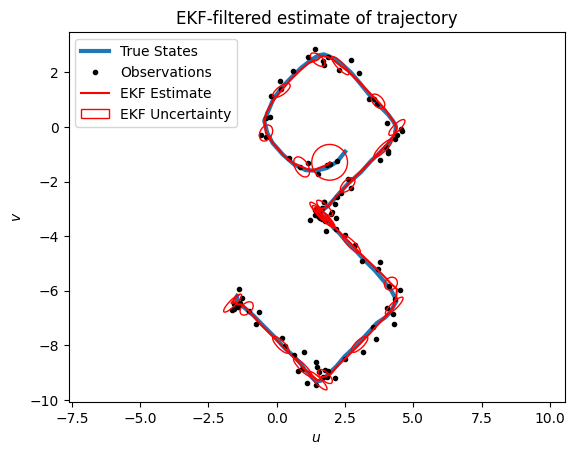

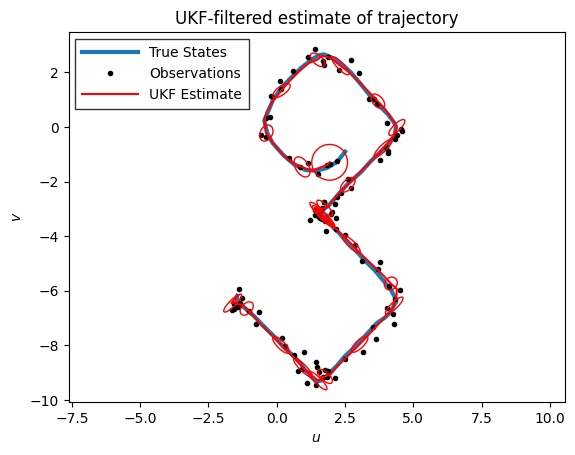

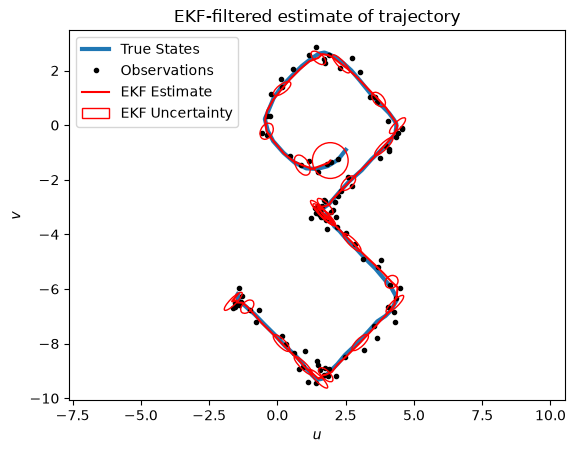

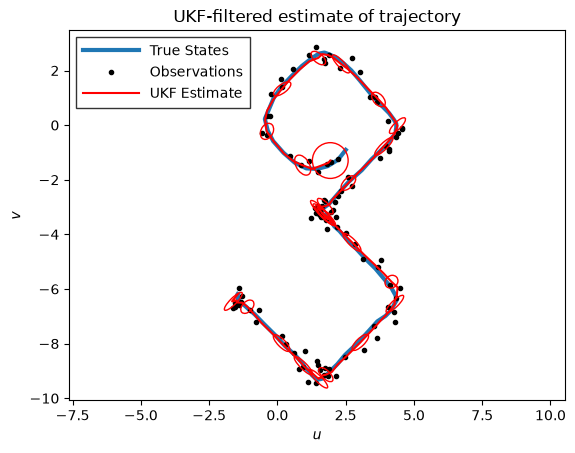

Tracking a spiraling object using the extended / unscented Kalman filter#

Consider an object moving in \(R^2\). We assume that we observe a noisy version of its location at each time step. We want to track the object and possibly forecast its future motion. We now show how to do this using a simple nonlinear Gaussian SSM, combined with various extensions of the Kalman filter algorithm.

Let the hidden state represent the position of the object, \(z_t =\begin{pmatrix} u_t & v_t \end{pmatrix}\). (We use \(u\) and \(v\) for the two coordinates, to avoid confusion with the state and observation variables.) We assume the following nonlinear dynamics:

\[\begin{align*} z_t &= f(z_{t-1}) + q_t \\ f(\begin{pmatrix} u \\ v \end{pmatrix}) &= \begin{pmatrix} u + 0.5 \sin(v) \\ v + \cos(u) \end{pmatrix} \end{align*}\]

where \(q_t \in R^2\) is the process noise, which we assume is Gaussian, so \(q_t \sim N(0,Q)\).

At each discrete time point we observe the location corrupted by Gaussian noise. Thus the observation model becomes

\[\begin{align*} y_t &= h(z_t) + r_t \\ h(\begin{pmatrix} u \\ v \end{pmatrix}) &= \begin{pmatrix} u \\ v \end{pmatrix} \end{align*}\]

where \(r_t \sim N(0,R)\) is the observation noise.

Setup#

%%capture
try:
    import dynamax
except ModuleNotFoundError:
    print('installing dynamax')
    %pip install -q dynamax[notebooks]
    import dynamax

from jax import numpy as jnp
from jax import random as jr
from matplotlib import pyplot as plt

from dynamax.utils.plotting import  plot_uncertainty_ellipses
from dynamax.nonlinear_gaussian_ssm import ParamsNLGSSM, NonlinearGaussianSSM, UKFHyperParams
from dynamax.nonlinear_gaussian_ssm import extended_kalman_filter as ekf
from dynamax.nonlinear_gaussian_ssm import unscented_kalman_filter as ukf

Create the model#

state_dim = 2
obs_dim = 2
f = lambda z: z + 0.4 * jnp.array([jnp.sin(z[1]), jnp.cos(z[0])])
h = lambda z: z

params = ParamsNLGSSM(
    initial_mean = jnp.array([1.5, 0.0]),
    initial_covariance = jnp.eye(state_dim),
    dynamics_function = f,
    dynamics_covariance = jnp.eye(state_dim) * 0.001,
    emission_function = h,
    emission_covariance = jnp.eye(obs_dim) * 0.05
)

nlgssm = NonlinearGaussianSSM(state_dim, obs_dim)

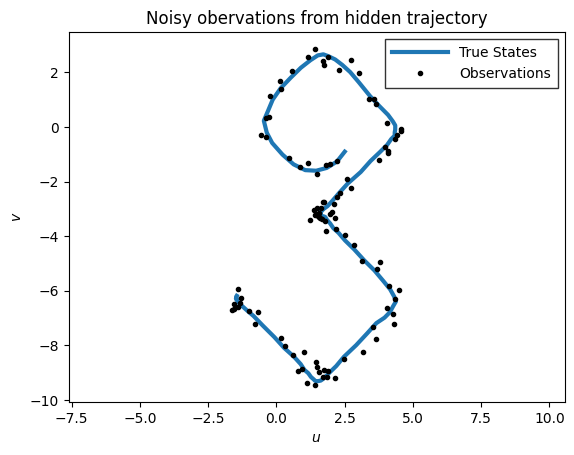

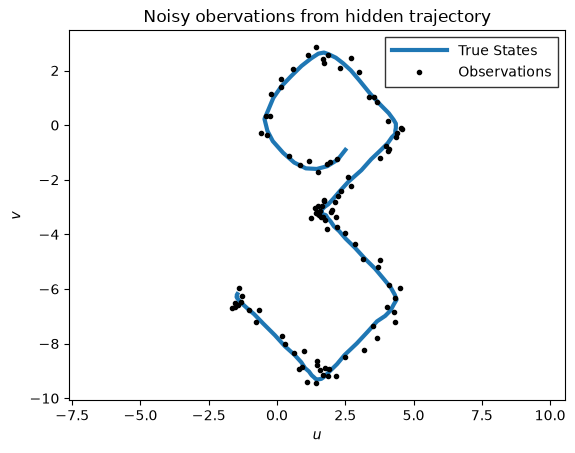

Sample some data from the model#

key = jr.PRNGKey(0)
states, emissions = nlgssm.sample(params, key, num_timesteps=100)

---------------------------------------------------------------------------
