This notebook demonstrates a simple pendulum tracking example. The example is taken from p45 of Bayesian Filtering and Smoothing (S. Särkkä, 2013). This code is based on the sarkka-jax repo.

The physics of the problem is shown below, where \(\alpha\) is the angle relative to vertical, and \(w(t)\) is a white noise process added to the angular velocity (a random acceleration term).

Pendulum

This gives rise to the following differential equation:

\[\begin{align*} \frac{d^2 \alpha}{d t^2} = -g \sin(\alpha) + w(t) \end{align*}\]

We can write this as a nonlinear SSM by defining the state to be \(z_1(t) = \alpha(t)\) and \(z_2(t) = d\alpha(t)/dt\). Thus

\[\begin{align*} \frac{d z}{dt} = \begin{pmatrix} z_2 \\ -g \sin(z_1) \end{pmatrix} + \begin{pmatrix} 0 \\ 1 \end{pmatrix} w(t) \end{align*}\]

If we discretize this step size \(\Delta\), we get the following formulation:

\[\begin{align*} \begin{pmatrix} z_{1,t} \\ z_{2,t} \end{pmatrix} = \begin{pmatrix} z_{1,t-1} + z_{2,t-1} \Delta \\ z_{2,t-1} -g \sin(z_{1,t-1}) \Delta \end{pmatrix} +q_{t} \end{align*}\]

where \(q_t \sim N(0,Q)\), and

\[\begin{equation*} Q = q^c \begin{pmatrix} \frac{\Delta^3}{3} & \frac{\Delta^2}{2} \\ \frac{\Delta^2}{2} & \Delta \end{pmatrix} \end{equation*}\]

where \(q^c\) is the spectral density of the continuous-time noise process.

We assume the observation model is

\[\begin{align*} y_t &= h(z_t) + r_t \\ h(z_t) &= \sin(\alpha_t) = \sin(z_{t,1}) \\ r_t &\sim N(0,R) \end{align*}\]

Setup#

%%capture
try:
    import dynamax
except ModuleNotFoundError:
    print('installing dynamax')
    %pip install -q dynamax[notebooks]
    import dynamax

%matplotlib inline
import matplotlib.pyplot as plt

import jax.numpy as jnp
import jax.random as jr
from jax import lax
from jaxtyping import Float, Array
from typing import Callable, NamedTuple

from dynamax.nonlinear_gaussian_ssm import ParamsNLGSSM, UKFHyperParams
from dynamax.nonlinear_gaussian_ssm import extended_kalman_smoother, unscented_kalman_smoother

# For pretty print of ndarrays
jnp.set_printoptions(formatter={"float_kind": "{:.2f}".format})

Sample data and plot it#

# Some parameters
dt = 0.0125
g = 9.8
q_c = 1
r = 0.3

# Lightweight container for pendulum parameters
class PendulumParams(NamedTuple):
    initial_state: Float[Array, "state_dim"] = jnp.array([jnp.pi / 2, 0])
    dynamics_function: Callable = lambda x: jnp.array([x[0] + x[1] * dt, x[1] - g * jnp.sin(x[0]) * dt])
    dynamics_covariance: Float[Array, "state_dim state_dim"] = jnp.array([[q_c * dt**3 / 3, q_c * dt**2 / 2], [q_c * dt**2 / 2, q_c * dt]])
    emission_function: Callable = lambda x: jnp.array([jnp.sin(x[0])])
    emission_covariance: Float[Array, "emission_dim"] = jnp.eye(1) * (r**2)

# Pendulum simulation (Särkkä Example 3.7)
def simulate_pendulum(params=PendulumParams(), key=0, num_steps=400):
    if isinstance(key, int):
        key = jr.PRNGKey(key)
    # Unpack parameters
    M, N = params.initial_state.shape[0], params.emission_covariance.shape[0]
    f, h = params.dynamics_function, params.emission_function
    Q, R = params.dynamics_covariance, params.emission_covariance

    def _step(carry, rng):
        state = carry
        rng1, rng2 = jr.split(rng, 2)

        next_state = f(state) + jr.multivariate_normal(rng1, jnp.zeros(M), Q)
        obs = h(next_state) + jr.multivariate_normal(rng2, jnp.zeros(N), R)
        return next_state, (next_state, obs)

    rngs = jr.split(key, num_steps)
    _, (states, observations) = lax.scan(_step, params.initial_state, rngs)
    return states, observations


states, obs = simulate_pendulum()

def plot_pendulum(time_grid, x_tr, x_obs, x_est=None, est_type=""):
    plt.figure()
    plt.plot(time_grid, x_tr, color="darkgray", linewidth=4, label="True Angle")
    plt.plot(time_grid, x_obs, "ok", fillstyle="none", ms=1.5, label="Measurements")
    if x_est is not None:
        plt.plot(time_grid, x_est, color="k", linewidth=1.5, label=f"{est_type} Estimate")
    plt.xlabel("Time $t$")
    plt.ylabel("Pendulum angle $x_{1,k}$")
    plt.xlim(0, 5)
    plt.ylim(-3, 5)
    plt.xticks(jnp.arange(0.5, 4.6, 0.5))
    plt.yticks(jnp.arange(-3, 5.1, 1))
    plt.gca().set_aspect(0.5)
    plt.legend(loc=1, borderpad=0.5, handlelength=4, fancybox=False, edgecolor="k")
    plt.show()

# Create time grid for plotting
time_grid = jnp.arange(0.0, 5.0, step=dt)

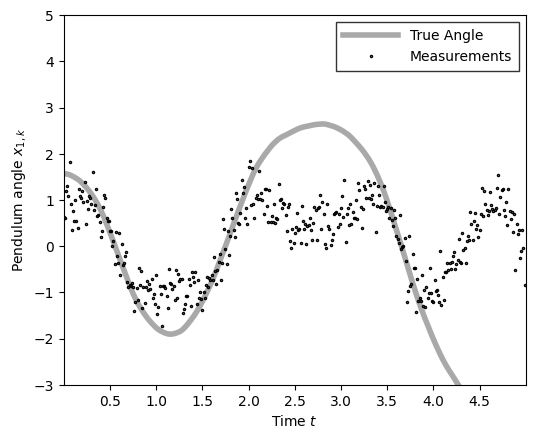

# Plot the generated data

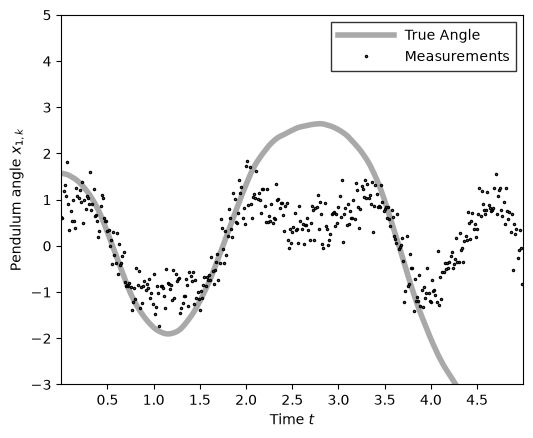

plot_pendulum(time_grid, states[:, 0], obs)

../../_images/359c3b1326748f1502ed94a55ebbb56716d233451925f6bad63c8f2aad5cde7f.png

# Compute RMSE
def compute_rmse(y, y_est):
    return jnp.sqrt(jnp.sum((y - y_est) ** 2) / len(y))


# Compute RMSE of estimate and print comparison with
# standard deviation of measurement noise
def compute_and_print_rmse_comparison(y, y_est, R, est_type=""):
    rmse_est = compute_rmse(y, y_est)
    print(f'{f"The RMSE of the {est_type} estimate is":<40}: {rmse_est:.2f}')
    print(f'{"The std of measurement noise is":<40}: {jnp.sqrt(R):.2f}')

Extended Kalman Filter / smoother#

pendulum_params = PendulumParams()

# Define parameters for EKF
ekf_params = ParamsNLGSSM(
    initial_mean=pendulum_params.initial_state,
    initial_covariance=jnp.eye(states.shape[-1]) * 0.1,
    dynamics_function=pendulum_params.dynamics_function,
    dynamics_covariance=pendulum_params.dynamics_covariance,
    emission_function=pendulum_params.emission_function,
    emission_covariance=pendulum_params.emission_covariance,
)

ekf_posterior = extended_kalman_smoother(ekf_params, obs)

---------------------------------------------------------------------------
AttributeError                            Traceback (most recent call last)
Cell In[9], line 13
# Define parameters for EKF
ekf_params = ParamsNLGSSM(
   initial_mean=pendulum_params.initial_state,
   initial_covariance=jnp.eye(states.shape[-1]) * 0.1,
   (...)
   emission_covariance=pendulum_params.emission_covariance,
)
---> 13 ekf_posterior = extended_kalman_smoother(ekf_params, obs)

File ~/work/dynamax/dynamax/dynamax/nonlinear_gaussian_ssm/inference_ekf.py:206, in extended_kalman_smoother(params, emissions, filtered_posterior, inputs)
# Get filtered posterior
if filtered_posterior is None:
--> 206     filtered_posterior = extended_kalman_filter(params, emissions, inputs=inputs)
ll = filtered_posterior.marginal_loglik
filtered_means = filtered_posterior.filtered_means

File ~/work/dynamax/dynamax/dynamax/nonlinear_gaussian_ssm/inference_ekf.py:153, in extended_kalman_filter(params, emissions, num_iter, inputs, output_fields)
# Run the extended Kalman filter
carry = (0.0, params.initial_mean, params.initial_covariance)
--> 153 (ll, *_), outputs = lax.scan(_step, carry, jnp.arange(num_timesteps))
outputs = {"marginal_loglik": ll, **outputs}
posterior_filtered = PosteriorGSSMFiltered(
   **outputs,
)

    [... skipping hidden 9 frame]

File ~/work/dynamax/dynamax/dynamax/nonlinear_gaussian_ssm/inference_ekf.py:130, in extended_kalman_filter.<locals>._step(carry, t)
# Update the log likelihood
H_x = H(pred_mean, u)
--> 130 ll += MVN(h(pred_mean, u), H_x @ pred_cov @ H_x.T + R).log_prob(jnp.atleast_1d(y))
# Condition on this emission
filtered_mean, filtered_cov = _condition_on(pred_mean, pred_cov, h, H, R, u, y, num_iter)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/decorator.py:232, in decorate.<locals>.fun(*args, **kw)
if not kwsyntax:
   args, kw = fix(args, kw, sig)
--> 232 return caller(func, *(extras + args), **kw)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/distributions/distribution.py:342, in _DistributionMeta.__new__.<locals>.wrapped_init(***failed resolving arguments***)
# Note: if we ever want to have things set in `self` before `__init__` is
# called, here is the place to do it.
self_._parameters = None
--> 342 default_init(self_, *args, **kwargs)
# Note: if we ever want to override things set in `self` by subclass
# `__init__`, here is the place to do it.
if self_._parameters is None:
 # We prefer subclasses will set `parameters = dict(locals())` because
 # this has nearly zero overhead. However, failing to do this, we will
 # resolve the input arguments dynamically and only when needed.

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/distributions/mvn_full_covariance.py:191, in MultivariateNormalFullCovariance.__init__(self, loc, covariance_matrix, validate_args, allow_nan_stats, name)
     # No need to validate that covariance_matrix is non-singular.
     # LinearOperatorLowerTriangular has an assert_non_singular method that
     # is called by the Bijector.
     # However, cholesky() ignores the upper triangular part, so we do need
     # to separately assert symmetric.
     scale_tril = tf.linalg.cholesky(covariance_matrix)
--> 191     super(MultivariateNormalFullCovariance, self).__init__(
       loc=loc,
       scale_tril=scale_tril,
       validate_args=validate_args,
       allow_nan_stats=allow_nan_stats,
       name=name)
self._parameters = parameters

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/decorator.py:232, in decorate.<locals>.fun(*args, **kw)
if not kwsyntax:
   args, kw = fix(args, kw, sig)
--> 232 return caller(func, *(extras + args), **kw)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/distributions/distribution.py:342, in _DistributionMeta.__new__.<locals>.wrapped_init(***failed resolving arguments***)
# Note: if we ever want to have things set in `self` before `__init__` is
# called, here is the place to do it.
self_._parameters = None
--> 342 default_init(self_, *args, **kwargs)
# Note: if we ever want to override things set in `self` by subclass
# `__init__`, here is the place to do it.
if self_._parameters is None:
 # We prefer subclasses will set `parameters = dict(locals())` because
 # this has nearly zero overhead. However, failing to do this, we will
 # resolve the input arguments dynamically and only when needed.

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/distributions/mvn_tril.py:228, in MultivariateNormalTriL.__init__(self, loc, scale_tril, validate_args, allow_nan_stats, experimental_use_kahan_sum, name)
 linop_cls = (KahanLogDetLinOpTriL if experimental_use_kahan_sum else
              tf.linalg.LinearOperatorLowerTriangular)
 scale = linop_cls(
     scale_tril,
     is_non_singular=True,
     is_self_adjoint=False,
     is_positive_definite=False)
--> 228 super(MultivariateNormalTriL, self).__init__(
   loc=loc,
   scale=scale,
   validate_args=validate_args,
   allow_nan_stats=allow_nan_stats,
   experimental_use_kahan_sum=experimental_use_kahan_sum,
   name=name)
self._parameters = parameters

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/decorator.py:232, in decorate.<locals>.fun(*args, **kw)
if not kwsyntax:
   args, kw = fix(args, kw, sig)
--> 232 return caller(func, *(extras + args), **kw)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/distributions/distribution.py:342, in _DistributionMeta.__new__.<locals>.wrapped_init(***failed resolving arguments***)
# Note: if we ever want to have things set in `self` before `__init__` is
# called, here is the place to do it.
self_._parameters = None
--> 342 default_init(self_, *args, **kwargs)
# Note: if we ever want to override things set in `self` by subclass
# `__init__`, here is the place to do it.
if self_._parameters is None:
 # We prefer subclasses will set `parameters = dict(locals())` because
 # this has nearly zero overhead. However, failing to do this, we will
 # resolve the input arguments dynamically and only when needed.

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/distributions/mvn_linear_operator.py:205, in MultivariateNormalLinearOperator.__init__(self, loc, scale, validate_args, allow_nan_stats, experimental_use_kahan_sum, name)
if loc is not None:
 bijector = shift_bijector.Shift(
     shift=loc, validate_args=validate_args)(bijector)
--> 205 super(MultivariateNormalLinearOperator, self).__init__(
   # TODO(b/137665504): Use batch-adding meta-distribution to set the batch
   # shape instead of tf.zeros.
   # We use `Sample` instead of `Independent` because `Independent`
   # requires concatenating `batch_shape` and `event_shape`, which loses
   # static `batch_shape` information when `event_shape` is not statically
   # known.
   distribution=sample.Sample(
       normal.Normal(
           loc=tf.zeros(batch_shape, dtype=dtype),
           scale=tf.ones([], dtype=dtype)),
       event_shape,
       experimental_use_kahan_sum=experimental_use_kahan_sum),
   bijector=bijector,
   validate_args=validate_args,
   name=name)
self._parameters = parameters

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/decorator.py:232, in decorate.<locals>.fun(*args, **kw)
if not kwsyntax:
   args, kw = fix(args, kw, sig)
--> 232 return caller(func, *(extras + args), **kw)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/distributions/distribution.py:342, in _DistributionMeta.__new__.<locals>.wrapped_init(***failed resolving arguments***)
# Note: if we ever want to have things set in `self` before `__init__` is
# called, here is the place to do it.
self_._parameters = None
--> 342 default_init(self_, *args, **kwargs)
# Note: if we ever want to override things set in `self` by subclass
# `__init__`, here is the place to do it.
if self_._parameters is None:
 # We prefer subclasses will set `parameters = dict(locals())` because
 # this has nearly zero overhead. However, failing to do this, we will
 # resolve the input arguments dynamically and only when needed.

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/distributions/transformed_distribution.py:244, in _TransformedDistribution.__init__(self, distribution, bijector, kwargs_split_fn, validate_args, parameters, name)
self._zero = tf.constant(0, dtype=tf.int32, name='zero')
# We don't just want to check isinstance(JointDistribution) because
# TransformedDistributions with multipart bijectors are effectively
# joint but don't inherit from JD. The 'duck-type' test is that
# JDs have a structured dtype.
--> 244 dtype = self.bijector.forward_dtype(self.distribution.dtype)
self._is_joint = tf.nest.is_nested(dtype)
super(_TransformedDistribution, self).__init__(
   dtype=dtype,
   reparameterization_type=self._distribution.reparameterization_type,
   (...)
   parameters=parameters,
   name=name)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/bijectors/bijector.py:1705, in Bijector.forward_dtype(self, dtype, name, **kwargs)
 input_dtype = nest_util.broadcast_structure(
     self.forward_min_event_ndims, self.dtype)
else:
 # Make sure inputs are compatible with statically-known dtype.
-> 1705   input_dtype = nest.map_structure_up_to(
     self.forward_min_event_ndims,
     lambda x: dtype_util.convert_to_dtype(x, dtype=self.dtype),
     nest_util.coerce_structure(self.forward_min_event_ndims, dtype),
     check_types=False)
output_dtype = self._forward_dtype(input_dtype, **kwargs)
try:
 # kwargs may alter dtypes themselves, but we currently require
 # structure to be statically known.

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/python/internal/backend/jax/nest.py:324, in map_structure_up_to(shallow_structure, func, *structures, **kwargs)
def map_structure_up_to(shallow_structure, func, *structures, **kwargs):
--> 324   return map_structure_with_tuple_paths_up_to(
     shallow_structure,
     lambda _, *args: func(*args),  # Discards path.
     *structures,
     **kwargs)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/python/internal/backend/jax/nest.py:353, in map_structure_with_tuple_paths_up_to(shallow_structure, func, expand_composites, *structures, **kwargs)
for input_tree in structures:
 assert_shallow_structure(
     shallow_structure, input_tree, check_types=check_types)
--> 353 return dm_tree.map_structure_with_path_up_to(
   shallow_structure, func, *structures, **kwargs)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tree/__init__.py:778, in map_structure_with_path_up_to(***failed resolving arguments***)
results = []
for path_and_values in _multiyield_flat_up_to(shallow_structure, *structures):
--> 778   results.append(func(*path_and_values))
return unflatten_as(shallow_structure, results)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/python/internal/backend/jax/nest.py:326, in map_structure_up_to.<locals>.<lambda>(_, *args)
def map_structure_up_to(shallow_structure, func, *structures, **kwargs):
 return map_structure_with_tuple_paths_up_to(
     shallow_structure,
--> 326       lambda _, *args: func(*args),  # Discards path.
     *structures,
     **kwargs)

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/bijectors/bijector.py:1707, in Bijector.forward_dtype.<locals>.<lambda>(x)
 input_dtype = nest_util.broadcast_structure(
     self.forward_min_event_ndims, self.dtype)
else:
 # Make sure inputs are compatible with statically-known dtype.
 input_dtype = nest.map_structure_up_to(
     self.forward_min_event_ndims,
-> 1707       lambda x: dtype_util.convert_to_dtype(x, dtype=self.dtype),
     nest_util.coerce_structure(self.forward_min_event_ndims, dtype),
     check_types=False)
output_dtype = self._forward_dtype(input_dtype, **kwargs)
try:
 # kwargs may alter dtypes themselves, but we currently require
 # structure to be statically known.

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/tensorflow_probability/substrates/jax/internal/dtype_util.py:247, in convert_to_dtype(tensor_or_dtype, dtype, dtype_hint)
elif isinstance(tensor_or_dtype, np.ndarray):
 dt = base_dtype(dtype or dtype_hint or tensor_or_dtype.dtype)
--> 247 elif np.issctype(tensor_or_dtype):
 dt = base_dtype(dtype or dtype_hint or tensor_or_dtype)
else:
 # If this is a Python object, call `convert_to_tensor` and grab the dtype.
 # Note that this will add ops in graph-mode; we may want to consider
 # other ways to handle this case.

File /opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/numpy/__init__.py:397, in __getattr__(attr)
   raise AttributeError(__former_attrs__[attr])
if attr in __expired_attributes__:
--> 397     raise AttributeError(
       f"`np.{attr}` was removed in the NumPy 2.0 release. "
       f"{__expired_attributes__[attr]}"
   )
if attr == "chararray":
   warnings.warn(
       "`np.chararray` is deprecated and will be removed from "
       "the main namespace in the future. Use an array with a string "
       "or bytes dtype instead.", DeprecationWarning, stacklevel=2)

AttributeError: `np.issctype` was removed in the NumPy 2.0 release. Use `issubclass(rep, np.generic)` instead.

m_ekf = ekf_posterior.filtered_means[:, 0]
plot_pendulum(time_grid, states[:, 0], obs, x_est=m_ekf, est_type="EKF")
compute_and_print_rmse_comparison(states[:, 0], m_ekf, r, "EKF")

../../_images/5c03a00f4d1ae1b7d2c92dd3fdc332fa164a515726911c1dad65e26021128498.png

The RMSE of the EKF estimate is         : 0.14
The std of measurement noise is         : 0.55

m_ekf = ekf_posterior.smoothed_means[:, 0]
plot_pendulum(time_grid, states[:, 0], obs, x_est=m_ekf, est_type="EKS")
compute_and_print_rmse_comparison(states[:, 0], m_ekf, r, "EKS")

../../_images/081451aede5a81adadbd64927ae25517628955d421045261929231e3bed3dce1.png

The RMSE of the EKS estimate is         : 0.09
The std of measurement noise is         : 0.55

Unscented Kalman Filter / smoother#

pendulum_params = PendulumParams()

ukf_params = ParamsNLGSSM(
    initial_mean=pendulum_params.initial_state,
    initial_covariance=jnp.eye(states.shape[-1]) * 0.1,
    dynamics_function=pendulum_params.dynamics_function,
    dynamics_covariance=pendulum_params.dynamics_covariance,
    emission_function=pendulum_params.emission_function,
    emission_covariance=pendulum_params.emission_covariance,
)

ukf_hyperparams = UKFHyperParams() # default gives same results as EKF


ukf_posterior = unscented_kalman_smoother(ukf_params, obs, ukf_hyperparams)

m_ukf = ukf_posterior.filtered_means[:, 0]
plot_pendulum(time_grid, states[:, 0], obs, x_est=m_ukf, est_type="UKF")
compute_and_print_rmse_comparison(states[:, 0], m_ukf, r, "UKF")

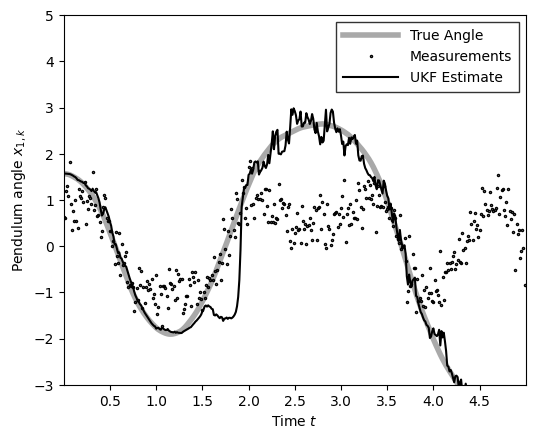

../../_images/be3771a9c1374c00a681421fdcb4b1cbbdb14629b80649f1b1606f7ab439039a.png

The RMSE of the UKF estimate is         : 0.14
The std of measurement noise is         : 0.55

m_uks = ukf_posterior.smoothed_means[:, 0]
plot_pendulum(time_grid, states[:, 0], obs, x_est=m_uks, est_type="UKS")
compute_and_print_rmse_comparison(states[:, 0], m_uks, r, "UKS")

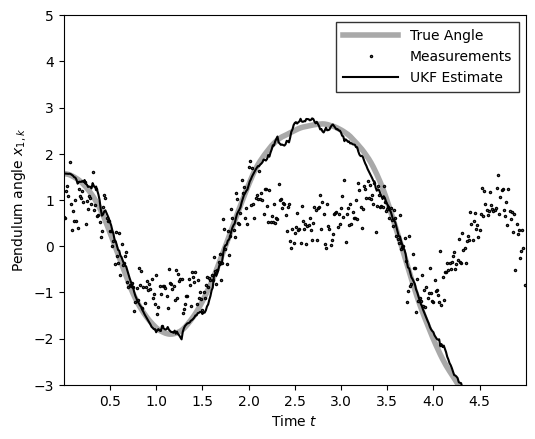

../../_images/bcce2b113686c4d9b809a53325c06d29494783ee60d3761de84aa6e34bae11c1.png

The RMSE of the UKS estimate is         : 0.09
The std of measurement noise is         : 0.55

# Let's see how sensitive UKF is to hyper-params

ukf_hyperparams = UKFHyperParams(alpha=3, beta=3, kappa=3)

ukf_posterior = unscented_kalman_smoother(ukf_params, obs, ukf_hyperparams)

m_ukf = ukf_posterior.filtered_means[:, 0]
plot_pendulum(time_grid, states[:, 0], obs, x_est=m_ukf, est_type="UKF")
compute_and_print_rmse_comparison(states[:, 0], m_ukf, r, "UKF")

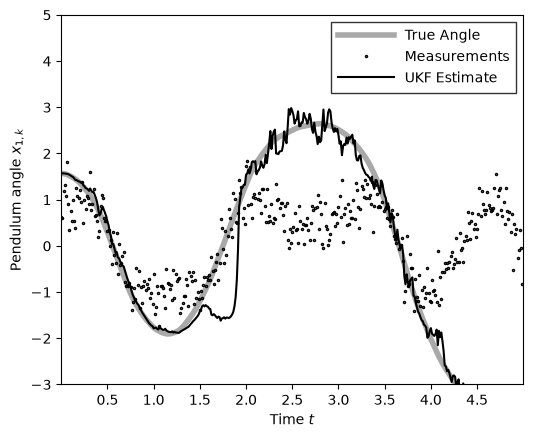

../../_images/d5012ca33ac3b6221f9a41ddc5d30c68ae3a276d1335e0daee6a90a2a01cbf7a.png

The RMSE of the UKF estimate is         : 1.07
The std of measurement noise is         : 0.55

Tracking a 1d pendulum using Extended / Unscented Kalman filter/ smoother

Contents

Tracking a 1d pendulum using Extended / Unscented Kalman filter/ smoother#

Setup#

Sample data and plot it#

Extended Kalman Filter / smoother#

Unscented Kalman Filter / smoother#
